HFE-7100(九氟丁基甲醚)

Introduction产品简介


HFE-7100是一种无色澄清,无色无味的液体物质,其中甲氧基-九氟代丁烷(C4F9OCH3)含量为99.5%,非挥发组分小于2.0pmm,专门用以替代氟利昂等“臭氧层破坏性”物质。该产品在新型的的氟氯化碳取代物产品家族中毒性最低,以8小时平均工作时间计,它的时间加权平均限制浓度750ppm。主要应用于精密电子仪器、医疗设备的清洗保清洗剂、溶剂,用于取代CFC-113、三氯乙烷、四氯化碳等。
●特点:无色、不燃烧,ODP值为零;表面张力低、黏度小、蒸发潜热小。
●用途:特殊用途的溶剂、清洗剂、漂洗剂、无水流体、去焊剂和热传递介质,主要用于电子仪表和激光盘片的清洗,颗粒杂物的去除,光学系统及精密场合下清洗。
●优点:由于性能最接近CFCs,可使用原有清洗设备,不需要增加设备投资,也不需要对工艺做大的改变。


3M Novec HFE-7100 Engineered Fluid, methoxy-nonafluorobutane (C4F9OCH3), is a clear,colorless and low-odor fluid intended to replace ozone-depleting substances (ODSs) and compounds with high global warming potential (GWP) in many applications. Its physical properties are compared with several other ODS replacement fluid candidates.
This proprietary fluid has zero ozone depletion potential and other favorable environment properties. It has one of the best toxicological profiles of CFC replacement materials, with a time-weighted average exposure guideline of 750 ppm (eight hour average).
The high boiling point and low surface tension of Novec 7100 fluid make it ideal for use in vapor degreasing applications as a neat (pure), azeotropic component or co-solvent part cleaner. In addition, its chemical and thermal stability, non-flammability and low toxicity make it useful for many other industrial and specialty solvent applications (see below).


※Cleaning and rinsing agent清洗剂或者漂洗溶剂
Heavy-duty cleaning (co-solvent) –
heavy oils, greases, fluxes
Medium-duty cleaning (azeotrope)–
oils, greases, waxes
Light-duty cleaning (neat)–
particulates, fluorolubes, light oils,
fluoropolymers


※Lubricant carrier润滑油稀释剂
Fluorocarbons
Hydrocarbons
Silicones
※Spot-free water drying agent脱水剂
(with surfactants added)
※Specialty solvents, dispersion media,
reaction media


※Spray contact cleaner喷雾罐的推进剂


※CFC, HCFC, HFC and PFC replacement替代CFC, HCFC, HFC and PFC


※Dielectric test media绝缘测试媒介


※Heat transfer导热液

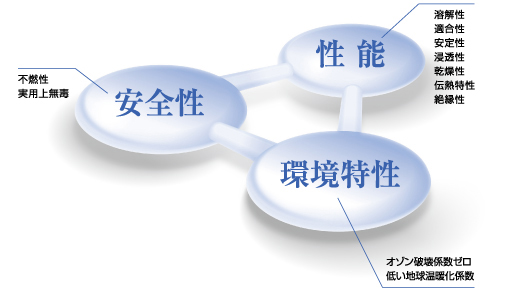

特徴イメージ:環境特性 ?ODP/O ?短い大気寿命 ?低温暖化係数 ?安全性 ?不燃性 ?低毒性 ?性能 ?溶解性 ?適合性 ?安定性 ?浸透性 ?乾燥性

  • 表面張力/粘度が低い。
  • 適度な溶解力を持っている。
  • 熱的?化学的安定性が高く過酸化物を形成しない。
  • 実用上無毒/ 引火点が無い。
  • オゾン破壊係数がゼロ。
  • 地球温暖化係数が低い。
  • 各種部材との適合性に優れる。



Material Description材料描述


组成

HFE-7100

九氟丁基甲醚Methoxy-nonafluorobutane

大于99.5%

外观Appearance

无色透明

非挥发性物质Non-volatile residue (NVR)

小于2.0 ppm



Typical Physical Properties Table 1物理化学性质


Properties性质

HFE-7100

CFC-113

HCFC-141B

HCFC-225ca/cb1

HFC-4310mee

化学式

C4F9OCH3

C2Cl3F3

C2Cl2H3F

C3Cl2HF5

C5H2F10

分子量

250

187

117

203

252

沸点℃

61

48

32

54

54

冰点℃

﹣135

﹣35

﹣103

﹣131

﹣80

液体密度2

1.52

1.56

1.23

1.55

1.58

表面张力

13.6

17.3

19.3

16.2

14.1

水中溶解性3

12

170

210

330

140

溶水能力3

95

110

420

310

490

蒸汽压4

202

334

569

290

226

1- g/ml @ 25°C 2-dynes/cm @ 25°C 3-ppm by weight 4-mm Hg @ 25°C



Environmental and Safety Properties and Exposure Guidelines – Table 2 环境、安全性质及暴露极限


Properties性质

HFE-7100

CFC-113

HCFC-141B

HCFC-225ca/cb1

HFC-4310mee

臭氧破坏潜值ODP
CFC-11 = 1.0

0

0.8

0.10

0.03

0.00

温室效应潜值
GWP

320

6000

700

180/620

1700

大气中寿命/年

4.1

85

9.2

2.1/6.2

17.1

闪点

空气中可燃范围

7.6-17.7

安全暴露极限,ppm(平均8小时/天

750

1000

??????? 500

50

200

Acute Toxicity急性毒性(4 hr. LC50 [Rat])

大于100000

55000

62000

37000

11000

Materials Compatibility材料相容性
Continuous Exposure长时间材料相容性
Novec 7100 fluid is compatible with most metals and hard polymers. Soft and elastomeric
materials should be limited to compounds that contain the least amount of extractable
plasticizer.
HFE-7100长时间和金属以及一些硬的聚合物兼容。但是对于一些软性聚合物或者橡胶产品必须额外做材料兼容性试验

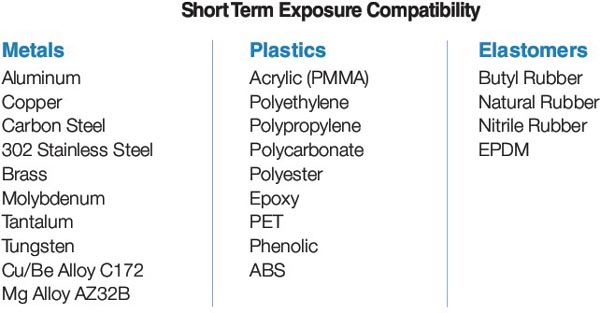

Non-Continuous Exposure非持续性或者短时间材料相容
Short-term testing of Novec 7100 fluid demonstrates compatibility, after one hour exposure at
boiling temperature, with a wide range of metals, plastics and elastomers, similar to the performance of perfluorinated liquids. Good short-term compatibility with particularly sensitive
plastics such as polycarbonate and PMMA indicates utility in cleaning of assemblies containing
many composite materials. As with most fluorinated liquids, Novec 7100 fluid will absorb into fluorinated plastics and elastomers over longer exposures.
HFE-7100短时间,及沸腾情况下,浸泡1小时,就像全氟液体一样,其可以和绝大多数金属、塑料和橡胶相容。即使是一些敏感性材料例如PC(聚碳酸酯)和亚克力(PMMA),HFE-7100对其在短时间也不会有影响。当然,就像就像全氟液体一样,如果将氟塑料或者橡胶过长时间浸泡,其也会被吸收!
