Hermetic Seal/Gross Leak Testing
Commercial tests for device hermetic seal integrity generally follow Military Standards 883-1014, 750-1071 and 202-112. Fluorinert liquids conform to these Military Standards.
Three different types of gross leak procedures are included in these Military Standards, confirming reliability to 10-5 atmospheres per cc/sec or more. Before the availability of Fluorinert liquids, gross leak testing reliability was limited to 10-3-10-4 atmospheres cc/sec.
With these tests, users can determine the hermetic integrity of electronic device housings. Two procedures are bubble tests and vapor detection, with escaping cavity gas identifying faulty units.
Product Recommendations:
Fluorinert Electronic Liquid FC-40,Fluorinert Electronic Liquid FC-43
Fluorinert Electronic Liquid FC-72
Fluorinert Electronic Liquid FC-84

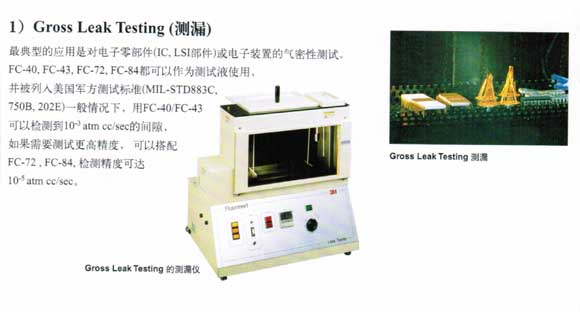

3M Gross Leak Testing(测漏)主要用于电子零部件(IC,LSI部件)或者电子装置的气密性测试。3M氟化液FC-40,FC-43,FC-72,FC-84都可以作为测试液使用。并列为美国军方测试标准( Military Standards 883-1014, 750-1071 and 202-112.),一般情况下用FC-40/FC-43测试10(-3)atm cc/sec的间隙,如需要测试更加高精度的部件,可以搭配FC-72,FC-84精确度可以达到10(-5)atm cc/sec的间隙
|
